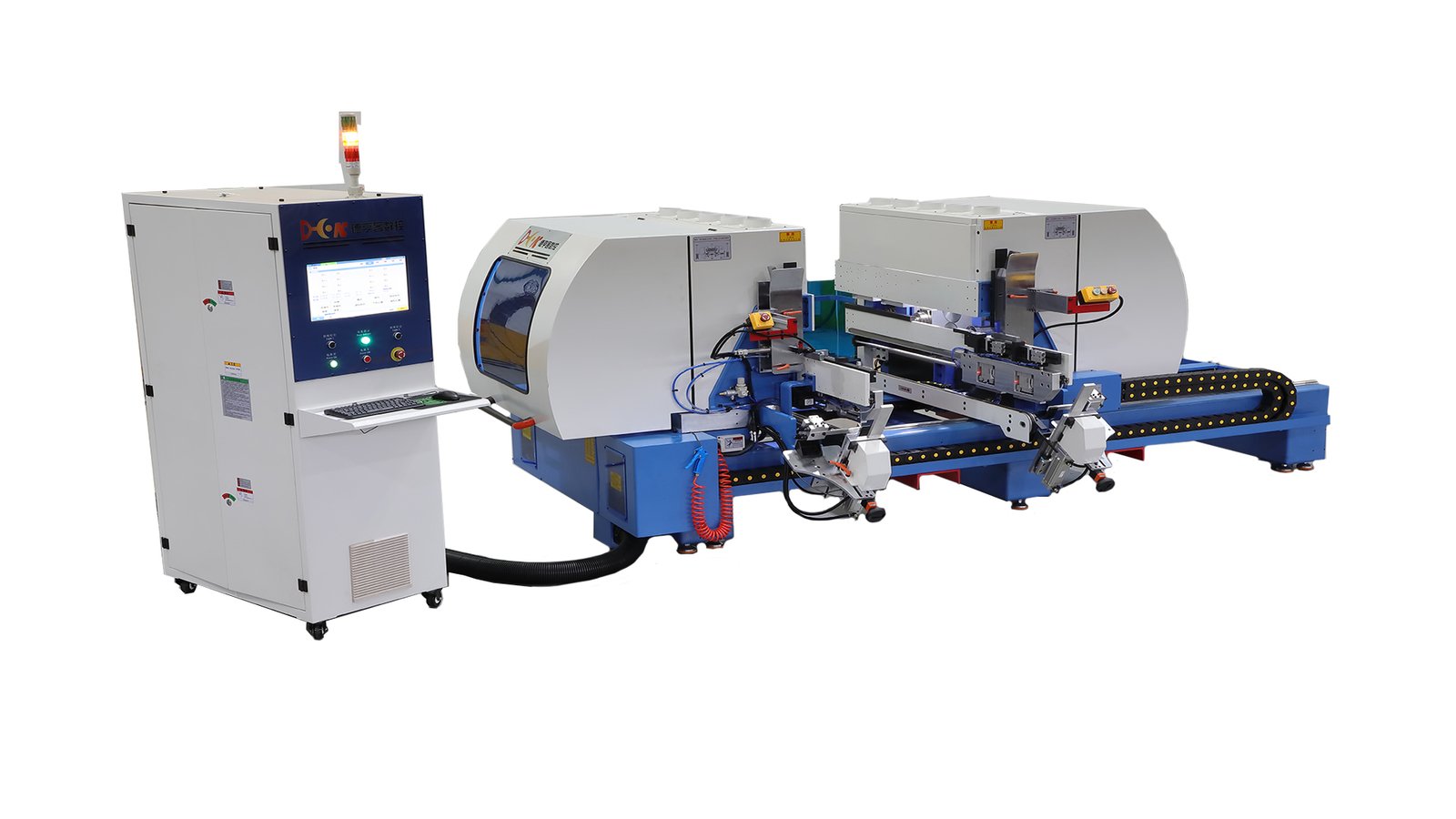

MD6015D Double End Machine
Double-End Sizing and Drilling for 90° Kitchen Cabinet Doors
Video Demonstration in Chinese
| Technical parameter ： | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Processing length range | 140*-1500mm | Saw spindlen speed | 7600r/min | |||||||
| Processing width range | 30-120mm | Drill spindle speed | 4500r/min | |||||||
| Processing thickness range | 12-50mm | Total installation power | 22.48kW | |||||||
| Rated current | 45A | Outline dimension | 3840mmx2900x1650mm | |||||||
| Source | 380V 3P 50Hz | Weight About | 3000kg | |||||||
