Product Detail

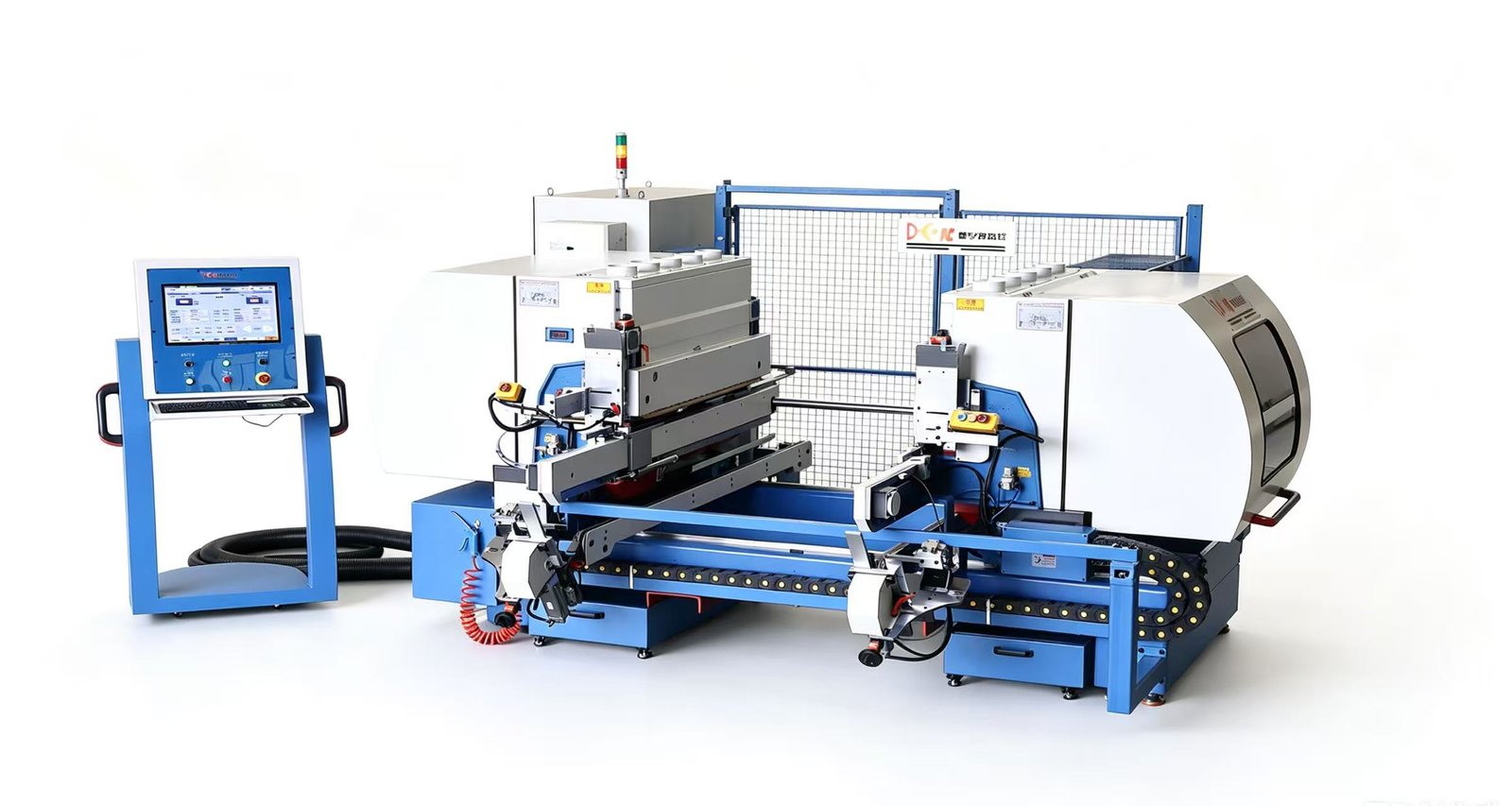

MD6315T CNC Dual-End Saw-Nailing Drill Machine
MD6315T CNC Dual-End Saw-Nailing Drill Machine is build for processing straight timber into square mortises, round mortises, and waist-round mortises.
Video demonstration in Chinese
| Technical parameter ： | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Processing length range | 230*-1500mm | Saw spindle speed | 7600r/min | ||||||||||||||
| Processing width range | 30-150mm | Top milling spindle speed | 18000r/min | ||||||||||||||
| Processing thickness range | 15-50mm | Bottom milling spindle speed | 12000r/min | ||||||||||||||
| Total installed power | 40.59KW | ||||||||||||||||
| Rated current | 82A | Outline dimension | 3840mmx2900x1750mm | ||||||||||||||
| Source | 380V 3P 50Hz | Weight: About | 3500kg | ||||||||||||||
